AST TuckUnder™

1500, 2000, 2500, 3000 and 3500 lb. lifting capacities

Grease Free Operation

Advanced long-life bushings eliminate the need for routine lubrication.

Centralized Hydraulics

All sensitive hydraulic and electrical components housed safely within the stainless steel pump box.

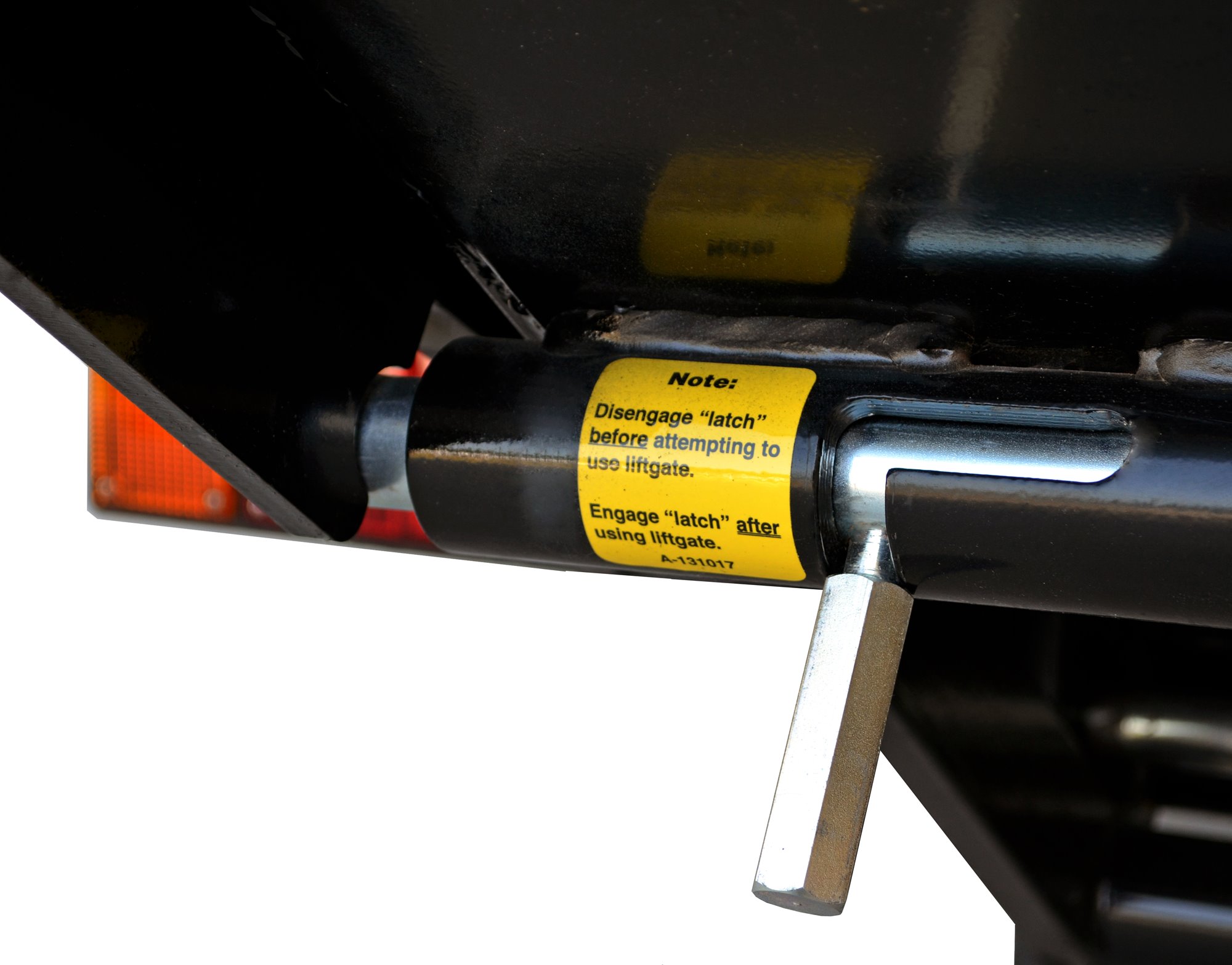

Heavy Duty Transit Latch

Redundant-system stowage in addition to hydraulic lock (not pictured)

Low Pressure Hydraulics

Reduced stress extends the life of the entire hydraulic system

Choice of Platforms

AST models are available with 9 different commercial-duty platforms to fit any job.

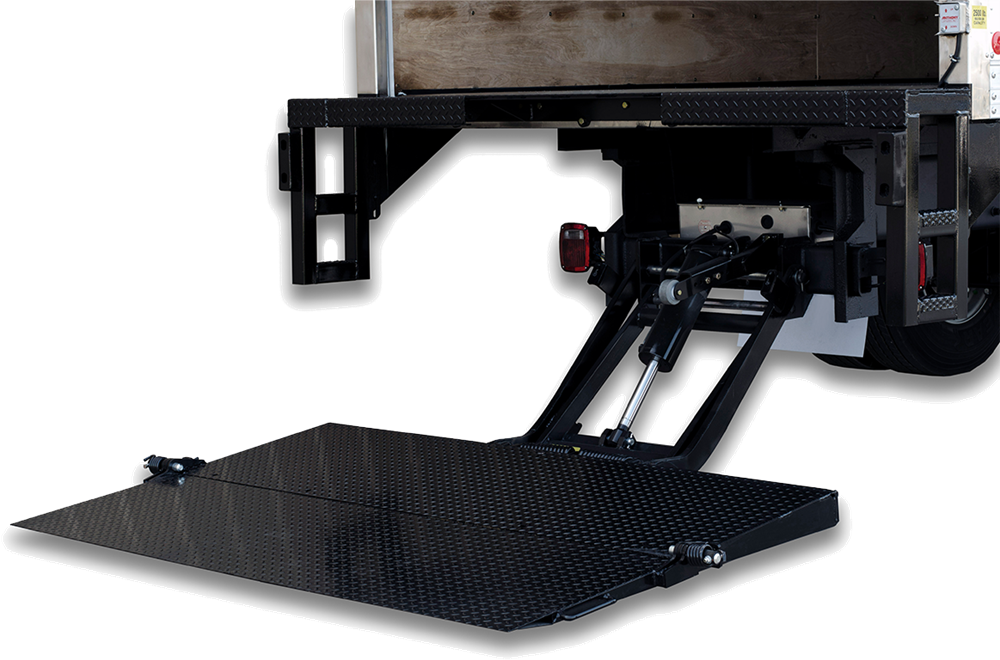

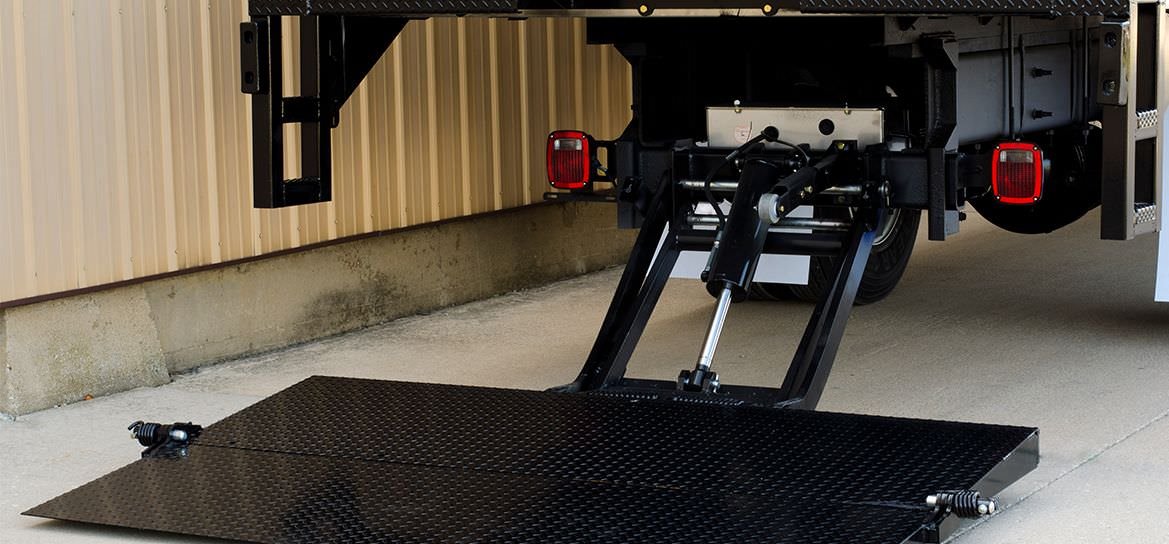

The AST Series

With its simple, rock-solid design, AST (Anthony Standard Tuckunder) has been the right choice for delivery in light and medium truck applications for over 30 years. Every AST model is packed with quality features, purpose-built to deliver years of low maintenance operation.

Model Family
Capacities
Bed Height Range
Description
AST

1500, 2000, 2500, 3000, 3500

42”-57”
Core AST models with a large selection of available capacities, platforms and other options
AST-L
2000, 2500
36" - 44"
With a low-profile floor extension and compact wedge platform, AST-L is designed to fit low bed heights.
AST-Plus
2500, 3000
38”-56”
The most popular AST configurations with a low profile floor extension for added bed height range. Always in stock, AST-Plus is the quick-quote go-to.
SM
1800, 2500, 3000
42"-57"
AST Series liftgate designed for mount on the side of a truck.
Recommended Applications
  • Van and Flatbed

    Van

    Flatbed

Find A Dealer Today!

AST

Capacities

1500, 2000, 2500, 3000, 3500

Bed Height Range
42”-57”
Description
Core AST models with a large selection of available capacities, platforms and other options

AST-L

Capacities
2000, 2500
Bed Height Range
36" - 44"
Description
With a low-profile floor extension and compact wedge platform, AST-L is designed to fit low bed heights.

AST-Plus

Capacities
2500, 3000
Bed Height Range
38”-56”
Description
The most popular AST configurations with a low profile floor extension for added bed height range. Always in stock, AST-Plus is the quick-quote go-to.

SM

Capacities
1800, 2500, 3000
Bed Height Range
42"-57"
Description
AST Series liftgate designed for mount on the side of a truck.
